100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

Name: 100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
Brand: SUPT
Price: 120.00 USD

China 100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor wholesale

Brand Name : SUPT

Model Number : VCAP0100-0020-00A

Certification : ce,ISO9001,CCC

Place of Origin : Jiangsu, China

MOQ : 2 pieces

Price : $120.00/pieces >=2 pieces

Payment Terms : T/T

Supply Ability : To be negotiated

Delivery Time : 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated

Packaging Details : Customized packaging etc.

Warranty : 3months-1year

Usage : BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project

Type : Micro Motor

Torque : Requests

Construction : Permanent Magnet

Commutation : Brush

Protect Feature : Totally Enclosed

Speed(RPM) : Variable Speed

Product Name : linear voice coil motor

Rated Voltage : 41.2V

Peak force : 100N

Continuous force : 47N

Port : Shanghai Port

Contact Now

Product Description

SUPTMOTION’s VCAP0100-0020-00A is an industrial-grade, ultra-high-thrust flat voice coil motor designed specifically for heavy-duty precision positioning. It delivers a peak thrust of up to 100 N and a continuous thrust of 47 N with a stroke of 4 mm, making it ideal for high-precision, short-stroke drive applications. Manufactured with a high-strength structure and wear-resistant, premium materials, this flat voice coil motor features exceptional force density, a fast response time of less than 5 milliseconds, and ultra-stable motion performance. Its robust 110×105×51 mm frame ensures minimal deformation during operation, making it ideal for precision stamping, heavy-duty clamping, and heavy-load positioning systems. This flat voice coil motor supports a maximum voltage of 41.2 V and features an ultra-high back-EMF constant of 80.1 V/m/s, enabling rapid and precise closed-loop control. It offers excellent thermal management capabilities, a wide operating temperature range, and exceptional resistance to shock and vibration. This flat voice coil motor is widely used in automotive manufacturing, precision stamping machines, heavy-duty optical component positioning, high-voltage switchgear, and large-scale automation equipment.

The main application of a voice coil motor:

Linear voice coil driver is a kind of voice coil drive mechanism, which uses linear voice coil driver for accurate control. It is a flat voice coil motor, its market mainly points to semiconductor and micro-machine tool industry. This linear voice coil actuator system is lightweight, compact and suitable for a variety of applications. It is characterized by light weight, short response time and high frequency. Short stroke, compact structure, model is VCAP series, is perfect for applications requiring precise and accurate movement.

Application Scenarios (Precise Matching)
• Precision metal stamping equipment
• Precision automotive parts assembly machines
• Heavy-duty optical component positioning systems
• Drive mechanisms for high-voltage switchgear

Technical Parameters:

Product Mdel	Peak Force (N)	Continious Force (N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/S)	Weight of the Coil (g)	Length(mm)	Width (mm)
VCAP0020-0068-00A	20	9.2	6.8	8.2	4.4	39	50	21.5
VCAP0020-0160-00A	20	5.3	16	27.6	4.4	59	50	22.5
VCAP0030-0200-00A	30	12.3	20	24.3	10.5	80	74	25

VCAP0100-0020-00A:

Parameter	value	Parameter	value
Model	VCAP0100-0020-00A	Peak thrust	100N
Continuous Thrust (25°C)	47N	Total stroke	4mm
Maximum Voltage	41.2V	Back-EMF constant	80.1V/m/s
Length	110mm	Width	105mm
Height	51mm	Weight	1.2kg

Detailed Images

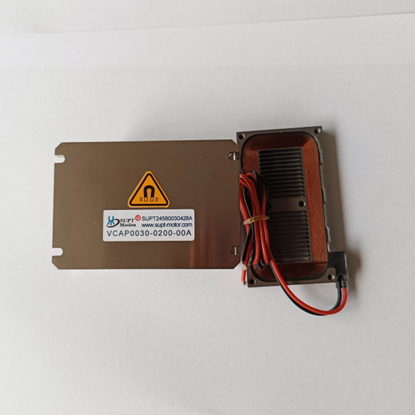

100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

Certifications

Our Company

Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.

The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.

The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.

FAQ

1.Are you manufacturer?

RE:Yes,we are factory and 100% manufacturer.

2.How can i get a quote?

Re:Please provide the details requirements of the product,such as the specification,quantity,packing reuirements,etc.

3.How long can i get them?

Re:Normally,samples need 7-10 working days.

Mass production need 12-18 working days.

It depend on your quantity.

4.Can you produce according to the samples?

Re:Yes,we can produce by your samples or technical drawings.

5.What is your terms of payment?

Re:T/T 50% as deposit,and 50% will be paid before the shipment.We'll show you the photos of the product and packages before you pay the balance.

6.What is your terms of delivery?

Re:EXW,FOB.

Our Service

Service:

A.Technical indicators & specifications can be customized.

B.Free sample,freight collect.
C.Satisfactory after-sales service.

D.Flexible MOQ.

Why Choose Us:

A.100% manufacturer.

B.Rich Production Experience.

C.Advanced Machine.

D.Strict Quality Control System.

Packing & Delivery

Loading Port	Shanghai Port,China.
Trade Term	FOB
Shipment	LCL or FCL by sea,by air or by express DHL,UPS.
Payment Term	T/T,Western Union,E-checking,Trade Assurance and paypal also accept.
Lead Time	7-10 working days after payment and as customer's requirements.

100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor Images
